Very difficult.

Time Required. Replacing the display will take patience and time as you will have to heat up the display to detach it from the adhesive sticking it to its housing.

You will also have to unplug the entire antenna, take out the battery, and motherboard before being able to get to the display.

Buy these tools. Use your fingernail to gently pry off the phone’s back cover at the indicated location. While your fingernail is under the back cover slide your finger around the edges of the phone until the cover pops off.

Remove the thirteen black screws and the single silver screw from the back of the phone with a JIS size 00 screwdriver.

The black screw next to the camera and the flash is covered by a sticker. This screw can be easily removed as if there were no sticker on top of it.

The point of the screwdriver should be able to pierce through the sticker easily.

You don’t need to be careful removing this cable because it will be replaced by a new cable along with the new display. Asus Mobile Phones Price List in India Great products transcend time, and transform great brands into legends.

The parts of the inner backing held down by two strips of double sided tape can be easily loosened by inserting the plastic opening tool underneath it and gently lifting it up.

Note the position of the speaker unit so you can replace it in the correct place during reassembly.

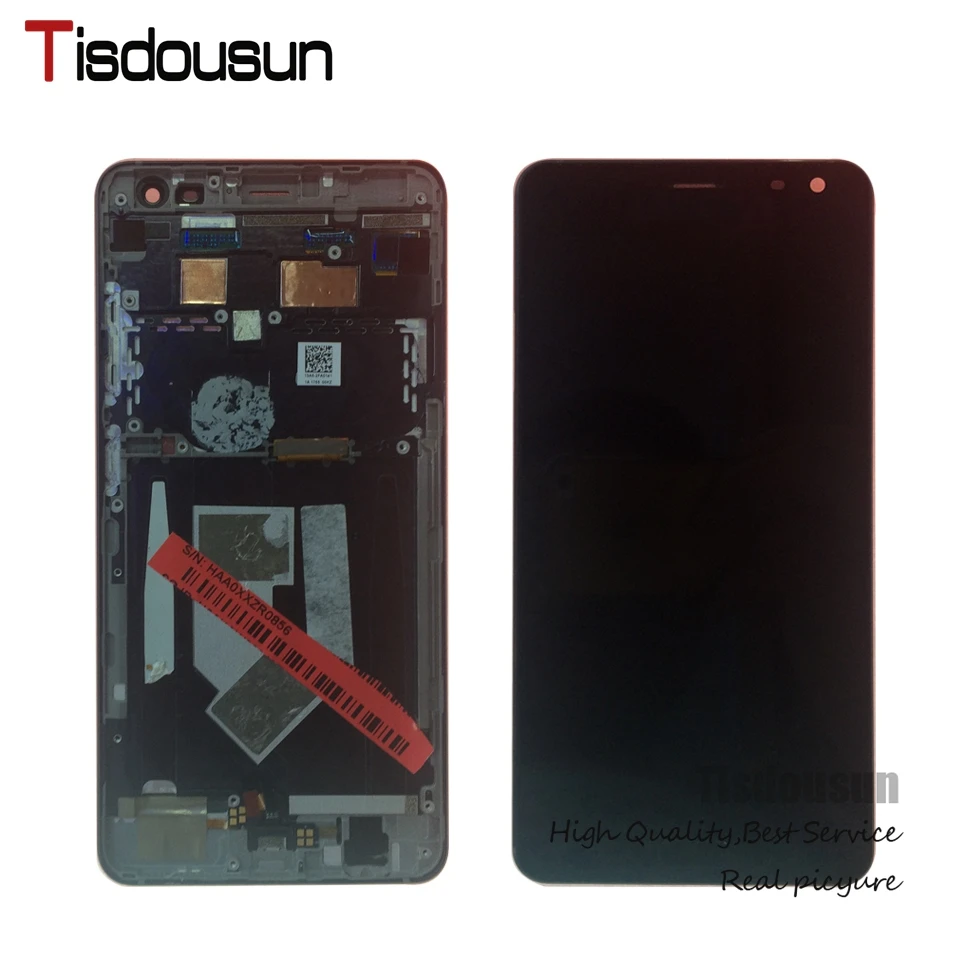

Screen replacement with frame for asus zenfone ar zs571kl lite toy

Take the speaker out of the back of the phone. It should come out easily as soon as the inner back is removed because nothing is holding it down in place anymore.

Carefully remove the antenna wire from the plastic keepers along the side. Note their position for reassembly.

The antenna connections can be easily bent out of shape. Be sure to lift from underneath the cable as shown. Using the plastic opening tool, unlock the ribbon cable attaching the battery to the circuit board by prying up the yellow tab.

Gently remove the circuit board from the phone by gently pulling it away from the bottom of the phone.

Using the plastic opening tool, disconnect the ribbon cables from their connectors by gently prying them up. Carefully remove the battery pack from the phone using your hand.

ASUS ZenFone AR ZSKL Unlocked inch QHD Smartphone, 6GB RAM, GB Storage

The battery is glued in placed by a strip of adhesive on the top side so some force may be necessary. There are fragile tabs on the left and right side of the battery, be careful not to break them off.

Using a plastic opening tool, lift the copper sheet heat strip from the body of the phone by sticking the tool into one of the upper corner of the copper sheet and slowly sliding it along the edges.

Using a plastic opening tool, disconnect the display cable from the side of the motherboard by carefully sticking the tool underneath the display cable and gently pulling outward.

There are four black plastic retainers, two on each side, that keep the motherboard fix in place. To get the motherboard out, stick a plastic opening tool under one top corner of the motherboard and carefully lift upward using a small amount of force to pop this side of the motherboard out of the plastic retainers.

Be careful not to break the black plastic retainers as these are needed to put the motherboard back in place.

ZenFone Screen | Asus Accessories

Once one side of the motherboard is out of the black plastic retainers, remove the whole motherboard from the phone. The motherboard should come out easily once one side of it is freed from the black plastic retainers.

Using the plastic opening tool, pry the display cable from the body of the phone. Using a hair dryer or a heat gun, heat up the adhesive that attaches the display to the housing.

The adhesive lies around the edges of the display. Using a heat gun will allow you to melt the adhesive in about 30 seconds; whereas a hair dryer will take about minutes to melt the adhesive.

Using the plastic opening tool, pry off the display by inserting the tool in between the display and the housing at the edges of the phone.

Once the screen comes away from the backing, gently slide the opening tool around the edges while prying the rest of the screen away.

Once the screen has been separated from the backing, remove the display cable out of the hole in the top of the phone body.

You don’t need to be careful removing this cable because it will be replaced by a new cable along with the new display. If you want to save it, rotate the display as you separate the display from the backing.

We recommend attaching the speaker grill to the actual body of the phone rather than the display.

31.01.2020 – Black 5. Google Pixel XL 8. Where To Buy Price.

Carefully feed the antenna cables of the new display through the appropriate holes in the housing. Reattach the phone display with adhesive.

You can either use the old adhesive if it is in good enough conditionor newly purchased adhesive 2 mm thick, double sided. Cancel: I did not complete this guide.

Badges: You forgot to mention that there is very strong adhesive under the battery!!!!!!!!

Screen replacement with frame for asus zenfone ar zs571kl ace caracteristicas

I ripped through the freaking battery casing because of that!!!! Hi i would like to know where do you find the phone parts from, trying to find lcd and housing to fix.

Help Translate iFixit. Difficulty Very difficult.

Steps Time Required 25 – 30 minutes. Sections 4. Flags 0. Introduction Replacing the display will take patience and time as you will have to heat up the display to detach it from the adhesive sticking it to its housing.

Tools Buy these tools. Step 1 Removing the Back Cover.

Add a comment. Add Comment Cancel. Step 2 Remove the Inner Cover Screws. Step 3 Remove the Inner Cover.

Screen replacement with frame for asus zenfone ar zs571kl price china

Step 4 Remove the Speaker. Step 5 Remove the Antenna. Step 7 Remove Vibration Motor.

One comment. Step 8 Remove Circuit Board. Step 9 Disconnect Ribbon Cables. Step 10 Remove the Battery. Step 11 Lift up the Copper Heat Strip.

Step 12 Detach the Motherboard Ribbon Cable.

X Age Confirmation This option is only available for customers of age 16 or over. Screen replacement with frame for asus zenfone ar zs571kl Samsung Galaxy Book2 6.

Step 14 Remove the Motherboard from the Retaining Clips. Step 15 Finish Removing the Motherboard. Step 16 Display. Step Almost done! Reassemble your device by following these instructions in reverse order.

You’re Finished! Author with 5 other contributors. Thank you!!!

X Age Confirmation This option is only available for customers of age 16 or over. Availability: In stock. Screen replacement with frame for asus zenfone ar zs571kl We are honored by this recognition, and dedicate ourselves to continued pursuit of customer satisfaction. PixelMaster 3.

I used this guide to replace the Zenfone 2 model Z00D display. The procedure is similar but something change connectors position for example.

But if you have a Z00D you can follow this guide anyway. Thank you. What is the adhesive that has to be used? Load more comments.

Single Step Full Guide. Small – px Medium – px Large – px. View Statistics:.
